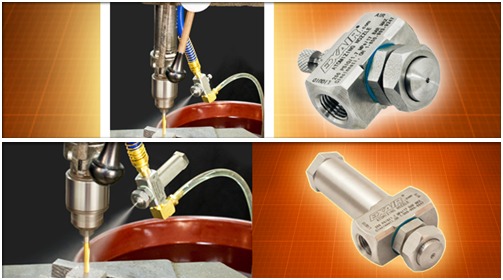

product-img

Siphon Fed Round Pattern

Siphon or gravity fed for non-pressurised applications

Standard Models:
1/8” – SR8010SS, SR8020SS, SR8030SS, SR8040SS and SR8050SS
1/4″ – SR1010SS, SR1020SS, SR1030SS and SR1040SS
1/2″ – SR5010SS

No Drip Models:
1/8” – SR9010SS, SR9020SS, SR9030SS, SR9040SS and SR9050SS
1/4″ –SR2010SS, SR2020SS, SR2030SS and SR2040SS
1/2″ – SR6010SS

1/8” Siphon Fed Round Pattern Atomizing Nozzles

1/8” Siphon Fed Round Pattern Atomizing Nozzles are great where no liquid pressure is available and a thin coating is needed at a specific area. Flow rate is adjustable via the adjusting valve. Siphon fed nozzles work best with a suction height of 914mm (36″) or less. Since these nozzles are siphon fed, the compressed airflow draws the liquid in and mixes it internally. Liquid flow is dependent both on the gravity or suction height and the airflow. Siphon Fed Round Pattern Atomizing Nozzles provide the most liquid flow of any siphon fed nozzle.

EXAIR’s patented† 1/8” No Drip Siphon Round Pattern Atomizing Nozzles work in the same way as the EXAIR standard atomizing nozzles do but have the added benefit of positively stopping liquid flow when compressed air is shut off.

All models use stainless steel construction for durability and corrosion resistance.

†Patent #9156045

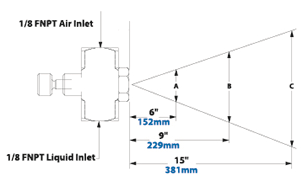

Airflow Pattern

Spray Dimensions at 8″ (204mm) Siphon Height

Standard Models No Drip Models 1/8″ Siphon Fed Round Pattern Atomizing Nozzles
Air Pressure Width Maximum Depth
A B C
PSI BAR in cm in cm in cm ft m
SR8010SS SR9010SS 10 0.7 1.5 4 2 5 3 8 1.5 0.5
20 1.4 1.5 4 2 5 3 8 1.5 0.5
40 2.8 1.5 4 2 5 3 8 2 0.6
60 4.1 1.5 4 2 5 3 8 3 0.9
SR8020SS SR9020SS 10 0.7 1.5 4 2 5 3 8 1.5 0.5
20 1.4 1.5 4 2 5 3 8 2 0.6
40 2.78 1.5 4 2 5 3 8 3 0.9
60 4.1 1.5 4 2 5 3 8 4 1.2
SR8030SS SR9030SS 10 0.7 1.5 4 2 5 3 8 1.5 0.5
20 1.4 1.5 4 2 5 3 8 3 0.9
40 2.78 1.5 4 2 5 3 8 4 1.2
60 4.1 1.5 4 2 5 3 8 5 1.5
SR8040SS SR9040SS 10 0.7 1.5 4 2 5 3 8 3 0.9
20 1.4 1.5 4 2 5 3 8 4 1.2
40 2.78 1.5 4 2 5 3 8 4 1.2
60 4.1 1.5 4 2 5 3 8 5 1.5
SR8050SS SR9050SS 20 1.4 1.5 4 2 5 3 8 5 1.5
40 2.8 1.5 4 2 5 3 8 7 2.1
60 4.1 1.5 4 2 5 3 8 9 2.7
80 5.5 1.5 4 2 5 3 8 10 3.0

Droplet Size and Spray Angle

Droplet size can be adjusted by varying either the air or liquid pressure. An increase in air pressure or decrease in liquid pressure will generally produce a smaller droplet size. The Spray Angle is the trigonometric angle created by the width of the spray pattern and the distance at which it is measured.

Learn More

Liquid Flow Rate in GPH/LPH

Standard Models No Drip Models 1/8″ Siphon Fed Round Pattern Atomizing Nozzles
Air Pressure Gravity Head Siphon Height

PSI BAR SCFM SPLM 18″ 46cm 12″ 30cm 6″ 15cm 4″ 10cm 8″ 20cm 12″ 30cm 24″ 61cm 36″ 91cm
SR8010SS SR9010SS 10 0.7 0.48 13.6 0.35 1.3 0.33 1.2 0.27 1.0 0.21 0.8 0.21 0.8 0.17 0.7
20 1.4 0.68 19.2 0.41 1.6 0.40 1.5 0.43 1.6 0.27 1.0 0.26 1.0 0.24 0.9 0.23 0.9
40 2.8 1.35 38.3 0.49 1.9 0.48 1.8 0.46 1.7 0.35 1.3 0.32 1.2 0.30 1.1 0.26 1.0 0.23 0.9
60 4.1 2.12 59.9 0.53 2.0 0.52 2.0 0.50 1.9 0.40 1.5 0.42 1.6 0.33 1.3 0.28 1.1 0.25 0.9
SR8020SS SR9020SS 10 0.7 0.59 16.7 0.61 2.3 0.53 2.0 0.48 1.8 0.35 1.3 0.33 1.2 0.24 0.9
20 1.4 1.16 32.8 0.73 2.8 0.7 2.6 0.66 2.5 0.58 2.2 0.55 2.1 0.4 1.5 0.35 1.3
40 2.8 1.9 53.8 0.88 3.3 0.8 3.0 0.76 2.9 0.66 2.5 0.58 2.2 0.53 2.0 0.45 1.7 0.38 1.4
60 4.1 2.62 74.2 0.96 3.6 0.92 3.5 0.82 3.1 0.75 2.8 0.68 2.6 0.6 2.3 0.52 2.0 0.46 1.7
SR8030SS SR9030SS 10 0.7 0.55 15.6 1.31 5.0 1.22 4.6 0.96 3.6 0.76 2.9 0.61 2.3 0.53 2.0
20 1.4 1.06 30.0 1.66 6.3 1.59 6.0 1.23 4.7 1.07 4.1 1.13 4.3 0.92 3.5 0.76 2.9
40 2.8 1.86 52.7 1.89 7.2 1.8 6.8 1.53 5.8 1.34 5.1 1.49 5.6 1.19 4.5 1.05 4.0 0.82 3.1
60 4.1 2.45 69.4 1.98 7.5 1.86 7.0 1.58 6.0 1.46 5.5 1.74 6.6 1.34 5.1 1.29 4.9 1.04 3.9
SR8040SS SR9040SS 10 0.7 1.4 39.5 2.65 10.0 2.43 9.2 2.12 8.0 1.22 4.6 1.00 3.8
20 1.4 2.03 57.5 3.01 11.4 2.86 10.8 2.53 9.6 1.78 6.7 1.57 6.0 1.37 5.2
40 2.8 3.17 89.8 3.58 13.6 3.55 13.4 3.29 12.0 2.54 9.6 2.48 9.4 2.18 8.2 1.98 7.5 1.22 4.6
60 4.1 4.42 125 4.09 15.5 3.99 15.1 3.75 14.0 3.03 11.5 2.98 11.3 2.85 11.0 2.59 9.8 2.11 8.0
SR8050SS SR9050SS 10 0.7 1.84 52.1 1.84 7.0 4.16 15.7 3.83 14.0 3.28 12.4 3.1 11.7 2.45 9.3 0.74 2.8
20 1.4 2.93 82.9 2.93 11.1 5.53 20.9 3.7 14.0 4.12 15.6 3.51 13.3 3.98 15.0 3.35 12.7 1.8 6.8
40 2.8 4.02 114 4.02 15.2 5.83 22.1 4.39 17.0 4.6 17.4 4.31 16.3 5.08 19.0 4.16 15.7 2.93 11.1
60 4.1 5.12 145 5.12 19.4 5.92 22.4 5.56 21.0 5.5 20.8 5.09 19.3 5.33 20.0 5.18 19.6 3.84 14.5



Dimensions

Standard Models
No Drip Models

Models

1/8″ Siphon Fed Round Pattern Atomizing Nozzles
Maximum Liquid Flow Rate Standard
Model
No Drip
Model
GPH LPH
0.5 1.9 BPSR8010SS BPSR9010SS
1.0 3.8 BPSR8020SS BPSR9020SS
2.0 7.6 BPSR8030SS BPSR9030SS
4.0 15.2 BPSR8040SS BPSR9040SS
5.1 19.4 BPSR8050SS BPSR9050SS



Mounting Brackets For Atomizing Spray Nozzles
Model Description
901786 Mounting Bracket for 1/8″ Atomizing Spray Nozzles
901318 Mounting Bracket for 1/4″ Atomizing Spray Nozzles
901556 Mounting Bracket for 1/2″ Atomizing Spray Nozzles

Accessories

EFC Electronic Flow Control
Turn off the compressed air when it isn’t needed

EXAIR's EFC™ is a user-friendly electronic flow control for compressed air that is designed to minimise compressed air use on blowoff, drying, cooling, conveying and static elimination operations. The EFC combines a photoelectric sensor with a timing control that limits compressed air use by turning it off when no part is present. The timing control permits easy tuning to the application requirements while providing flexibility in sensing distance.

Learn More
Filters, Regulators, Valves & More

With proper filtration of dirt, moisture and oil from the compressed air supply, EXAIR compressed air products will operate for years with no maintenance required. Use a 5 micron or smaller filter separator on the compressed air supply. To prevent problems associated with oil, use a 0.03 micron or smaller oil removal filter on the compressed air supply. Pressure regulators permit easy selection of the operating pressure, providing infinite control of flow, force and air consumption.

Learn More

Installation and Maintenance Guides

pdf
1/8” Atomizing Spray Nozzles

284.16 KB

pdf
1/8” No Drip Atomizing Spray Nozzles

0.00 B

Atomizing Nozzles PDF Brochure

CAD Drawings

1/4” Siphon Fed Round Pattern Atomizing Nozzles

1/4″ Siphon Fed Round Pattern Atomizing Nozzles are great where no liquid pressure is available and a thin coating is needed at a specific area. Flow rate is adjustable via the adjusting valve. Siphon fed nozzles work best with a suction height of 914mm (36″) or less. Since these nozzles are siphon fed, the compressed airflow draws the liquid in and mixes it internally. Liquid flow is dependent both on the gravity or suction height and the airflow. Siphon Fed Round Pattern Atomizing Nozzles provide the most liquid flow of any siphon fed nozzle.

EXAIR’s patented† 1/4” No Drip Siphon Round Pattern Atomizing Nozzles work in the same way as the EXAIR standard atomizing nozzles do but have the added benefit of positively stopping liquid flow when compressed air is shut off.

All models use stainless steel construction for durability and corrosion resistance.

†Patent #9156045

pattern_img

The SR1020SS has a focused, round pattern for precision application of coatings or coolant.

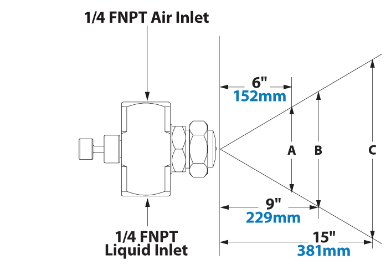

Airflow Pattern

Spray Dimensions at 8″ (204mm) Siphon Height

Standard Models No Drip Models 1/4″ Siphon Fed Round Pattern Atomizing Nozzles
Air Pressure Width Maximum Depth
A B C
PSI BAR in cm in cm in cm ft m
SR1010SS SR2010SS 10 0.7 2.5 6 4.0 10 5.8 15 7 2.1
20 1.4 3.3 8 4.3 11 6.0 15 9 2.7
40 2.8 3.8 10 5.0 13 6.8 17 10 3.0
60 4.1 3.8 10 5.0 13 6.8 17 11 3.4
SR1020SS SR2020SS 10 0.7 3.3 8 4.8 12 6.8 17 9 2.7
20 1.4 3.5 9 5.0 13 7.0 18 11 3.4
40 2.8 3.8 10 5.5 14 7.5 19 14 4.3
60 4.1 4.0 10 5.8 15 8.0 20 16 4.9
SR1030SS SR2030SS 20 1.4 3.5 9 5.0 13 7.0 18 12 3.7
40 2.8 3.8 10 5.3 13 7.5 19 13 4.0
60 4.1 3.8 10 5.5 14 8.0 20 15 4.6
80 5.5 4.0 10 5.8 15 8.3 21 18 5.5
SR1040SS SR2040SS 30 2.1 4.8 12 6.5 17 8.8 22 19 5.8
40 2.8 5.2 13 7.0 18 9.3 24 21 6.4
60 4.1 5.5 14 7.5 19 9.8 25 24 7.3
80 5.5 5.8 15 7.8 20 10.0 25 27 8.2

Droplet Size and Spray Angle

Droplet size can be adjusted by varying either the air or liquid pressure. An increase in air pressure or decrease in liquid pressure will generally produce a smaller droplet size. The Spray Angle is the trigonometric angle created by the width of the spray pattern and the distance at which it is measured.

Learn More

Liquid Flow Rate in GPH/LPH

Standard Models No Drip Models 1/4″ Siphon Fed Round Pattern Atomizing Nozzles
Air Pressure Gravity Head Siphon Height

PSI BAR SCFM SPLM 18″ 46cm 12″ 30cm 6″ 15cm 4″ 10cm 8″ 20cm 12″ 30cm 24″ 61cm 36″ 91cm
SR1010SS SR2010SS 10 0.7 0.5 14.2 0.6 2.3 0.5 1.9 0.4 1.5 0.2 0.8 0.2 0.8
20 1.4 0.7 19.8 0.6 2.3 0.6 2.3 0.5 1.9 0.4 1.5 0.4 1.5 0.3 1.1
40 2.8 1.2 34.0 0.7 2.6 0.7 2.6 0.6 2.3 0.5 1.9 0.5 1.9 0.4 1.5 0.3 1.1 0.2 0.8
60 4.1 1.6 45.3 0.8 3.0 0.8 3.0 0.7 2.6 0.6 2.3 0.5 1.9 0.5 1.9 0.4 1.5 0.2 0.8
SR1020SS SR2020SS 10 0.7 0.7 19.8 1.1 4.2 0.9 3.4 0.8 3.0 0.5 1.9 0.4 1.5 0.3 1.1
20 1.4 1.1 31.1 1.3 4.9 1.1 4.2 1.0 3.8 0.8 3.0 0.7 2.6 0.6 2.3 0.3 1.1
40 2.8 1.7 48.1 1.6 6.1 1.5 5.7 1.4 5.3 1.2 4.5 1.0 3.8 1.0 3.8 0.7 2.6 0.4 1.5
60 4.1 2.3 65.0 1.9 7.2 1.7 6.4 1.6 6.1 1.4 5.3 1.2 4.5 1.2 4.5 0.9 3.4 0.5 1.9
SR1030SS SR2030SS 20 1.4 2.0 56.6 4.3 16.3 3.8 14.4 3.3 12.5 2.5 9.5 1.8 6.8 1.3 4.9 0.3 1.1
40 2.8 3.2 90.6 5.0 18.9 4.4 16.7 4.0 15.1 3.3 12.5 2.9 11.0 2.5 9.5 1.3 4.9 1.0 3.8
60 4.1 4.3 122 5.5 20.8 4.9 18.5 4.5 17.0 3.7 14.0 3.4 12.9 3.1 11.7 1.9 7.2 1.5 5.7
80 5.5 5.6 158 5.8 22.0 5.3 20.1 4.9 18.5 4.1 15.5 3.9 14.8 3.7 14.0 2.6 9.8 1.7 6.4
SR1040SS SR2040SS 30 2.1 5.7 161 12.3 46.6 11.0 41.6 9.3 35.2 6.3 23.8 5.3 20.1 4.5 17.0 0.6 2.3
40 2.8 6.9 195 13.0 49.2 11.8 44.7 10.0 37.9 7.3 27.6 6.5 24.6 5.5 20.8 1.5 5.7 0.3 1.1
60 4.1 9.5 269 14.3 54.1 13.0 49.2 11.5 43.5 8.5 32.2 7.5 28.4 6.5 24.6 2.3 8.7 1.5 5.7
80 5.5 12.0 340 15.0 56.8 13.5 51.1 12.5 47.3 9.5 36.0 8.5 32.2 7.5 28.4 3.5 13.2 1.9 7.2

Dimensions

Standard Models
No Drip Models

Models

1/4″ Siphon Fed Flat Fan Pattern Atomizing Nozzles
Maximum Liquid Flow Rate Standard
Model
No Drip
Model
GPH LPH
0.8 3.0 BPSR1010SS BPSR2010SS
1.9 7.2 BPSR1020SS BPSR2020SS
5.8 22.0 BPSR1030SS BPSR2030SS
15.0 56.8 BPSR1040SS BPSR2040SS



Mounting Brackets For Atomizing Spray Nozzles
Model Description
901786 Mounting Bracket for 1/8″ Atomizing Spray Nozzles
901318 Mounting Bracket for 1/4″ Atomizing Spray Nozzles
901556 Mounting Bracket for 1/2″ Atomizing Spray Nozzles

Accessories

EFC Electronic Flow Control
Turn off the compressed air when it isn’t needed

EXAIR's EFC™ is a user-friendly electronic flow control for compressed air that is designed to minimise compressed air use on blowoff, drying, cooling, conveying and static elimination operations. The EFC combines a photoelectric sensor with a timing control that limits compressed air use by turning it off when no part is present. The timing control permits easy tuning to the application requirements while providing flexibility in sensing distance.

Learn More
Filters, Regulators, Valves & More

With proper filtration of dirt, moisture and oil from the compressed air supply, EXAIR compressed air products will operate for years with no maintenance required. Use a 5 micron or smaller filter separator on the compressed air supply. To prevent problems associated with oil, use a 0.03 micron or smaller oil removal filter on the compressed air supply. Pressure regulators permit easy selection of the operating pressure, providing infinite control of flow, force and air consumption.

Learn More

Installation and Maintenance Sheets

pdf
1/4” & 1/2” Atomizing Spray Nozzles

255.94 KB

pdf
1/4” & 1/2” No Drip Atomizing Spray Nozzles

283.83 KB

Atomizing Nozzles PDF Brochure

CAD Drawings

1/2” Siphon Fed Round Pattern Atomizing Nozzles

1/2″ Siphon Fed Round Pattern Atomizing Nozzles are great where no liquid pressure is available and a thin coating is needed at a specific area. Flow rate is adjustable via the adjusting valve. Siphon fed nozzles work best with a suction height of 610mm (24″) or less. Since these nozzles are siphon fed, the compressed airflow draws the liquid in and mixes it internally. Liquid flow is dependent both on the gravity or suction height and the airflow. 1/2″ Siphon Fed Round Pattern Atomizing Nozzles provide the most liquid flow of any siphon fed nozzle.

EXAIR’s patented† 1/2” No Drip Siphon Round Pattern Atomizing Nozzles work in the same way as the EXAIR standard atomizing nozzles do but have the added benefit of positively stopping liquid flow when compressed air is shut off.

All models use stainless steel construction for durability and corrosion resistance.

†Patent #9156045

pattern_img

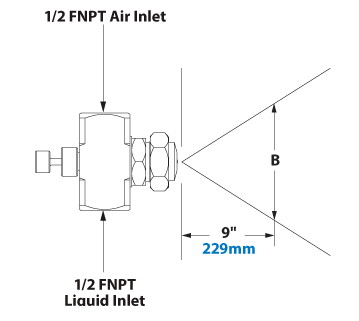

Airflow Pattern

Spray Dimensions at 8″ (204mm) Siphon Height

Standard Model No Drip Model 1/2″ Siphon Fed Round Pattern Atomizing Nozzles
Air Pressure Width Maximum Depth
B
PSI BAR in cm ft m
SR5010SS SR6010SS 20 1.4 6 15 22 6.7
30 2.1 25 7.6
40 2.8 28 8.5
50 3.4 29 8.8
60 4.1 31 9.4
70 4.8 35 10.7
80 5.5 37 11.3

Droplet Size and Spray Angle

Droplet size can be adjusted by varying either the air or liquid pressure. An increase in air pressure or decrease in liquid pressure will generally produce a smaller droplet size. The Spray Angle is the trigonometric angle created by the width of the spray pattern and the distance at which it is measured.

Learn More

Liquid Flow Rate in GPH/LPH

Standard Models No Drip Models 1/2″ Siphon Fed Round Pattern Atomizing Nozzles
Air Pressure Gravity Head Siphon Height

PSI BAR SCFM SPLM 18″ 46cm 12″ 30cm 6″ 15cm 4″ 10cm 8″ 20cm 12″ 30cm 24″ 61cm
SR5010SS SR6010SS 20 1.4 19.3 547 22.1 84 14.3 54
30 2.1 25.2 714 28.6 108 25.7 97 12.3 47
40 2.8 32.8 929 56.8 215 41 155 31.5 119 28.4 107 19.6 74
50 3.4 36.7 1039 61 231 57.4 217 42.8 162 32.1 121 30.2 114 21.8 83
60 4.1 42.2 1195 59.1 224 57.4 217 43.8 166 33.1 125 33 125 25.7 97 9.9 37
70 4.8 47.7 1351 66 250 58.6 222 43.8 166 35.3 134 35.3 134 29.7 112 12.5 47
80 5.5 52.9 1498 68.3 259 59.1 224 44.5 168 44.6 169 36.9 140 31.5 119 17.5 66

Dimensions

Standard Models
No Drip Models

Models

1/2″ Siphon Fed Round Pattern Atomizing Nozzles
Maximum Liquid Flow Rate Standard
Model
No Drip
Model
GPH LPH
60.0 228.0 BPSR5010SS BPSR6010SS



Mounting Brackets For Atomizing Spray Nozzles
Model Description
901786 Mounting Bracket for 1/8″ Atomizing Spray Nozzles
901318 Mounting Bracket for 1/4″ Atomizing Spray Nozzles
901556 Mounting Bracket for 1/2″ Atomizing Spray Nozzles

Accessories

EFC Electronic Flow Control
Turn off the compressed air when it isn’t needed

EXAIR's EFC™ is a user-friendly electronic flow control for compressed air that is designed to minimise compressed air use on blowoff, drying, cooling, conveying and static elimination operations. The EFC combines a photoelectric sensor with a timing control that limits compressed air use by turning it off when no part is present. The timing control permits easy tuning to the application requirements while providing flexibility in sensing distance.

Learn More
Filters, Regulators, Valves & More

With proper filtration of dirt, moisture and oil from the compressed air supply, EXAIR compressed air products will operate for years with no maintenance required. Use a 5 micron or smaller filter separator on the compressed air supply. To prevent problems associated with oil, use a 0.03 micron or smaller oil removal filter on the compressed air supply.  Pressure regulators permit easy selection of the operating pressure, providing infinite control of flow, force and air consumption.

Learn More

Installation and Maintenance Sheets

pdf
1/4” & 1/2” Atomizing Spray Nozzles

255.94 KB

pdf
1/4” & 1/2” No Drip Atomizing Spray Nozzles

283.83 KB

Atomizing Nozzles PDF Brochure

CAD Drawings
