External Mix Wide Angle Flat Fan Pattern

For pressure fed applications with independent air and liquid control

Standard Models:
EB1010SS, EB1020SS, EB1030SS and EB1040SS

No Drip Models:
EB2010SS, EB2020SS, EB2030SS and EB2040SS

1/4”

1/4″ External Mix Wide Angle Flat Fan Pattern Atomizing Nozzles are great where a high volume of liquid is needed over a wide area such as a conveyor line. Because they are external mix, airflow and liquid flow can be controlled independently. Common applications are those which require a moderate application of liquid over a broad area, such as cooling or coating wide webs.

EXAIR’s patented† 1/4″ No Drip External Mix Wide Angle Flat Fan Pattern Atomizing Nozzles work in the same way as the EXAIR standard atomizing nozzles do but have the added benefit ofpositively stopping liquid flow when compressed air is shut off.

All models use stainless steel construction for durability and corrosion resistance.

†Patent #9156045

pattern_img

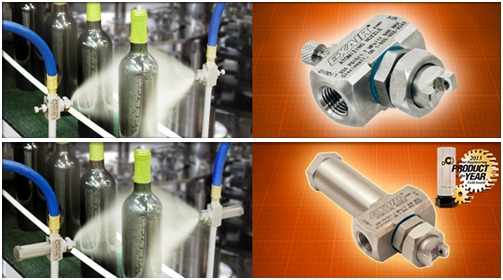

(2) Model EB1040SS nozzles are used to rinse wine bottles after capping.

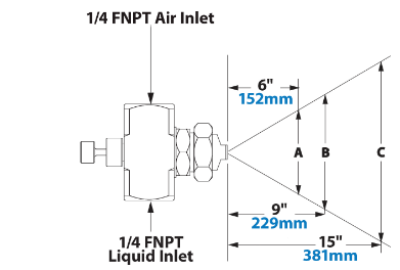

Airflow Pattern

Spray Dimensions

Standard Models No Drip Models 1/4″ External Mix Wide Angle Flat Fan Pattern Atomizing Nozzles
Pressure Width Maximum Depth
Air Liquid A B C
PSI BAR PSI BAR in cm in cm in cm ft m
EB1010SS EB2010SS 10 0.7 5 0.3 8.0 20.3 11.0 27.9 14.0 35.6 9 2.7
15 1.0 10 0.7 9.0 22.9 12.0 30.5 17.0 43.2 11 3.4
20 1.4 20 1.4 9.3 23.6 14.0 35.6 19.0 48.3 11 3.4
25 1.7 30 2.1 11.0 27.9 15.0 38.1 20.0 50.8 13 4.0
25 1.7 40 2.8 11.0 27.9 15.0 38.1 21.0 53.3 14 4.3
EB1020SS EB2020SS 8 0.6 5 0.3 11.0 27.9 16.0 40.6 19.0 48.3 8 2.4
15 1.0 20 1.4 11.0 27.9 16.0 40.6 21.0 53.3 11 3.4
20 1.4 20 1.4 12.0 30.5 17.0 43.2 22.0 55.9 12 3.7
25 1.7 30 2.1 13.0 33.0 18.0 45.7 24.0 61.0 12 3.7
30 2.1 40 2.8 13.0 33.0 19.0 48.3 24.0 61.0 14 4.3
EB1030SS EB2030SS 15 1.0 3 0.2 11.0 27.9 17.0 43.2 21.0 53.3 13 4.0
25 1.7 10 0.7 12.0 30.5 18.0 45.7 23.0 58.4 16 4.9
45 3.1 20 1.4 13.0 33.0 19.0 48.3 24.0 61.0 21 6.4
60 4.1 30 2.1 14.0 35.6 18.0 45.7 24.0 61.0 26 7.9
70 4.8 40 2.8 14.0 35.6 18.0 45.7 24.0 61.0 30 9.1
EB1040SS EB2040SS 30 2.1 5 0.3 13.0 33.0 19.0 48.3 24.0 61.0 17 5.2
45 3.1 20 1.4 14.0 35.6 20.0 50.8 26.0 66.0 19 5.8
65 4.5 20 1.4 15.0 38.1 21.0 53.3 27.0 68.6 23 7.0
80 5.5 20 1.4 15.0 38.1 22.0 55.9 28.0 71.1 26 7.9
90 6.2 40 2.8 16.0 40.6 22.0 55.9 28.0 71.1 26 7.9

Droplet Size and Spray Angle

Droplet size can be adjusted by varying either the air or liquid pressure. An increase in air pressure or decrease in liquid pressure will generally produce a smaller droplet size. The Spray Angle is the trigonometric angle created by the width of the spray pattern and the distance at which it is measured.

Learn More

Liquid Flow Rate

Standard Models No Drip Models 1/4″ External Mix Wide Angle Flat Fan Pattern Atomizing Nozzles
3 PSI/0.2 BAR Liquid 5 PSI/0.3 BAR Liquid 10 PSI/0.7 BAR Liquid 20 PSI/1.4 BAR Liquid 40 PSI/2.8 BAR Liquid
Air Pressure GPH LPH SCFM SLPM Air Pressure GPH LPH SCFM SLPM Air Pressure GPH LPH SCFM SLPM Air Pressure GPH LPH SCFM SLPM Air Pressure GPH LPH SCFM SLPM
PSI BAR PSI BAR PSI BAR PSI BAR PSI BAR
EB1010SS EB2010SS 5 0.3 1.0 3.8 0.9 25.5 5 0.3 1.4 5.3 0.9 25.5 8 0.6 1.9 7.2 1.1 31.1 10 10 2.7 10.2 1.3 36.8 15 1.0 3.8 14.4 1.7 48.1
8 0.6 1.1 31.1 10 0.7 1.3 36.8 10 0.7 1.3 36.8 20 20 2.0 56.6 20 1.4 2.0 56.6
10 0.7 1.3 36.8 15 1.0 1.7 48.1 20 1.4 2.0 56.6 30 30 2.6 73.6 30 2.1 2.6 73.6
15 1.0 1.7 48.1 20 1.4 2.0 56.6 30 2.1 2.6 73.6 35 35 3.0 85.0 35 2.4 3.0 85.0
EB1020SS EB2020SS 6 0.4 2.5 9.5 1.0 28.3 6 0.4 3.2 12.1 1.0 28.3 6 0.4 4.3 16.3 1.0 28.3 10 10 5.9 22.3 1.3 36.8 20 1.4 7.5 28.4 2.0 56.6
7 0.5 1.1 31.1 8 0.6 1.1 31.1 8 0.6 1.1 31.1 12 12 1.5 42.5 25 1.7 2.3 65.1
8 0.6 1.1 31.1 9 0.6 1.2 34.0 10 0.7 1.3 36.8 15 15 1.7 48.1 30 2.1 2.6 74.0
10 0.7 1.3 36.8 10 0.7 1.3 36.8 12 0.8 1.5 42.5 20 20 2.0 56.6 35 2.4 3.0 85.0
EB1030SS EB2030SS 8 0.6 4.4 16.7 3.4 96.3 10 0.7 5.5 20.8 3.8 108 15 1.0 7.6 28.8 4.8 136 35 35 11.0 41.6 8.4 238 50 3.4 14.0 53.0 11.0 311
15 1.0 4.8 136 20 1.4 5.9 167 25 1.7 6.7 190 45 45 10.1 286 65 4.5 12.3 348
20 1.4 5.9 167 25 1.7 6.7 190 35 2.4 8.4 238 55 55 11.7 331 85 5.9 15.7 445
25 1.7 6.7 190 30 2.1 7.6 215 40 2.8 9.3 263 60 60 12.0 340 95 6.5 16.8 476
EB1040SS EB2040SS 10 0.7 10.0 37.9 3.8 108 15 1.0 13.5 51.1 4.8 136 25 1.7 18.8 71.2 6.7 190 45 45 27.6 104 10.1 286 75 5.2 31.0 117 13.7 388
15 1.0 4.8 136 20 1.4 5.9 167 30 2.1 7.6 215 50 50 11.0 311 85 5.9 15.7 445
20 1.4 5.9 167 30 2.1 7.6 215 40 2.8 9.3 263 70 70 13.4 379 95 6.5 16.8 476
25 1.7 6.7 190 35 2.4 8.4 238 45 3.1 10.1 286 80 80 14.8 419 100 6.9 18.3 518



Dimensions

Standard Models
No Drip Models

Models

1/4″ External Mix Wide Angle Flat Fan Pattern Atomizing Nozzles
Maximum Liquid Flow Rate Standard
Model
No Drip
Model
GPH LPH
3.8 14.4 BPEB1010SS BPEB2010SS
7.5 28.4 BPEB1020SS BPEB2020SS
14.0 53.0 BPEB1030SS BPEB2030SS
31.0 117.0 BPEB1040SS BPEB2040SS



Mounting Brackets For Atomizing Spray Nozzles
Model Description
901786 Mounting Bracket for 1/8″ Atomizing Spray Nozzles
901318 Mounting Bracket for 1/4″ Atomizing Spray Nozzles
901556 Mounting Bracket for 1/2″ Atomizing Spray Nozzles

Accessories

EFC Electronic Flow Control
Turn off the compressed air when it isn’t needed

EXAIR's EFC™ is a user-friendly electronic flow control for compressed air that is designed to minimise compressed air use on blowoff, drying, cooling, conveying and static elimination operations. The EFC combines a photoelectric sensor with a timing control that limits compressed air use by turning it off when no part is present. The timing control permits easy tuning to the application requirements while providing flexibility in sensing distance.

Learn More
Filters, Regulators, Valves & More

With proper filtration of dirt, moisture and oil from the compressed air supply, EXAIR compressed air products will operate for years with no maintenance required. Use a 5 micron or smaller filter separator on the compressed air supply. To prevent problems associated with oil, use a 0.03 micron or smaller oil removal filter on the compressed air supply. Pressure regulators permit easy selection of the operating pressure, providing infinite control of flow, force and air consumption.

Learn More

Installation and Maintenance Guides

pdf
1/4” &1/2” Atomizing Spray Nozzles

255.94 KB

pdf
1/4” & 1/2” No Drip Atomizing Spray Nozzles

283.83 KB

Atomizing Nozzles PDF Brochure
