| Mini Super Air Nozzles | |||
| Model | Inlet | Material | |
| BP1102 | 1/8 BSP Female | Zinc Aluminium Alloy | |
| BP1102SS | 1/8 BSP Female | Type 316 Stainless Steel | |
| BP1102-PEEK | 1/8 BSP Female | PEEK Thermoplastic | |
| BP1103 | 1/8 BSP Male | Zinc Aluminium Alloy | |
| BP1103SS | 1/8 BSP Male | Type 316 Stainless Steel | |

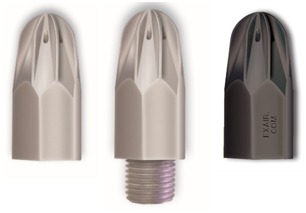

Model 1102, 1102-PEEK, 1102SS, 1103 and 1103SS Mini Super Air Nozzle
The 1/8 NPT Mini Super Air Nozzle provides a forceful, concentrated stream of high velocity airflow. It has fewer holes than the larger Super Air Nozzles, resulting in lower sound levels, air consumption and force.
Performance
| Â | Air Consumption | Force* | Sound Level | ||
| Model | SCFM | SLPM | Ozs | Grams | dBA |
| 1102 | 10 | 283 | 9 | 255 | 71 |
| 1102SS | 10 | 283 | 9 | 255 | 71 |
| 1102-PEEK | 10 | 283 | 9 | 255 | 71 |
| 1103 | 10 | 283 | 9 | 255 | 71 |
| 1103SS | 10 | 283 | 9 | 255 | 71 |
* Force measured at 12″ (305mm) from target. Sound level measured at 36″ (914mm)
All measurements taken at 80 PSIG (5.5 BAR).
Dimensions & Airflow Pattern
Models
Accessories
Swivel Fittings, Stay Set Hoses & More
EXAIR Swivel Fittings make it easy to adjust the aim of the Air Nozzles and Jets. Correct placement can help optimise performance and improve efficiency. Add Flexible Stay Set Hoses and Magnetic Bases for applications where frequent repositioning of the Air Nozzles or Jets is required
Learn MoreFilters, Regulators, Valves & More
With proper filtration of dirt, moisture and oil from the compressed air supply, EXAIR compressed air products will operate for years with no maintenance required. Use a 5 micron or smaller filter separator on the compressed air supply. To prevent problems associated with oil, use a 0.03 micron or smaller oil removal filter on the compressed air supply. Pressure regulators permit easy selection of the operating pressure, providing infinite control of flow, force and air consumption
