Intellistat Ion Air Nozzle™

A mountable nozzle for hands free static elimination at assembly stations and benchtop applications!

Rated Class 5 for clean rooms and controlled environments per ISO 14644-1

What is the Intellistat Ion Air Nozzle?

The patent pending Model 8505 Intellistat Ion Air Nozzle is EXAIR’s latest hands-free innovation in a long line of static elimination solutions. This intelligent product provides a balanced ionised air stream to neutralise static and remove troublesome particulate during sensitive assembly work, test procedures and clean processes. With a +/- 30 volt offset, the Intellistat nozzle was designed to use minimal compressed air while delivering a focused blowoff and exceptional static decay rates capable of reducing 1000 volts to 100 volts in 0.6 seconds. The design includes an efficient, low voltage transformer which converts 120VAC to 24V DC to assure safety. An EXAIR engineered air nozzle delivers the air well below the OSHA standards for noise exposure and dead-end pressure, which maintains safety compliance.

Including a compact stainless steel adjustable mounting bracket, the Intellistat nozzle can be mounted to benchtops and machine frames, for example, to provide hands-free operation when needing both hands to package, test or assemble parts and products. The Intellistat Ion Air Nozzle is designed with other convenient features including the 6mm push-in air connection, and green and red LEDs, which indicate proper functionality. The housing is made of a durable static dissipative polycarbonate to further minimise any potential for static electricity discharge around sensitive electronics, sensors or materials. The Intellistat Ion Air Nozzle produces an ionised airstream that is essential for removing static, dust, debris and particulate in sterile environments such as pharmaceutical and medical laboratories, clean rooms and electronics labs.

How the Intellistat Ion Air Nozzle Works

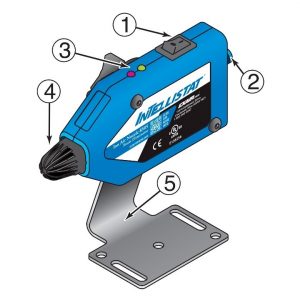

After connecting the 24V power supply, activate the power switch (1) and turn on a compressed source to supply the 6mm push-in fitting (2) to activate the static eliminating ions and airflow. Proper or improper functionality is indicated by a green or red LED (3). The non-marring nozzle (4) provides quiet performance and OSHA compliance. The compact mounting bracket (5) is included to provide hands-free operation.

Watch the Video


Flow Air Consumption Sound Level
30 2.1 2.7 76.46 76
80 5.5 5.8 164.21 81

Force & Discharge Time

Pressure Supply Force @ 12″ (305mm) From Target Discharge Time 1000V to 100V Discharge Time 5000V to 500V
PSIG BAR LBS Oz Grams Seconds Seconds
30 2.1 0.02 0.32 9.1 1.2 1.2
80 5.5 0.10 1.60 45.4 0.6 0.6

Discharge rate taken from 1″ (25mm) away



  • Precision parts assembly
  • Maintain charge neutrality in laboratory processes
  • Remove particles from parts and surfaces in clean environments
  • Printed circuit board manufacturing
  • Maintain cleanliness during electronics manufacturing and assembly
  • Eliminating electrostatic discharge
  • Remove debris from medical products
  • Clean lenses, glass containers and slides


  • Mountable, hands-free operation
  • Quick change emitter point
  • Rapid static decay
  • Low voltage operation
  • OSHA safe air outlet and noise level
  • LED indicators for proper and improper functionality


Certifications: The Intellistat Ion Air Nozzle is UL listed and CE and RoHS compliant.

Power Supply Input: 100-240VAC – 50/60 Hz 0.7A Max

Power Supply Output: EXAIR Model 902067 Power Supply (24VDC, 1.0A Max) is required for Intellistat Ion Air Nozzle operation. Included with Intellistat Ion Air Nozzle.

Electrical Hazard: Shockless (less than 40 microamperes short circuited)

Do not use near flammable materials or gases.

Balance: ±30V

Operating Temperature: 0˚C to 41˚C (32˚F to 105˚F)

Materials of Construction:

            Plastic Parts: Static Resistant Polycarbonate

            Emitters: Stainless Steel

Gas Input: 30psig – 125psig

Clean Dry Compressed Air or Nitrogen

Air Connection: 6mm tube

Cleanroom Classification: ISO 14644-1 Class 5, operational.



Intellistat Ion Air Gun
Model Description
8505 Intellistat Ion Air Nozzle
includes 24VDC Power Supply with power cable and 3.05m (10-foot) x 6mm OD compressed air tubing and mounting bracket.
902067 Replacement 24VDC Power Supply – included in system listed above


Digital Static Meter
Locate the source of the static problem

EXAIR’s Model 7905 Digital Static Meter is sensitive and responsive. It indicates the surface voltage and polarity on objects up to ±20 kV when measured 25mm (1”) away.

Learn More
Filters, Regulators, Valves & More

With proper filtration of dirt, moisture and oil from the compressed air supply, EXAIR compressed air products will operate for years with no maintenance required. Use a 5 micron or smaller filter separator on the compressed air supply. To prevent problems associated with oil, use a 0.03 micron or smaller oil removal filter on the compressed air supply. Pressure regulators permit easy selection of the operating pressure, providing infinite control of flow, force and air consumption

Learn More
