Previous| Heavy Duty Line Vac Model | Hose Size | ||||||||||||||||

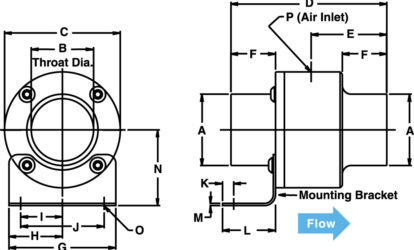

| A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | ||
| 150075 | in | 0.75 | 0.5 | 1.88 | 3.88 | 1.88 | 1 | 2 | 1 | 0.76 | 1.52 | 0.25 | 1.38 | 0.06 | 1.44 | 0.2 | 1/4 NPT |
| mm | 19 | 13 | 48 | 99 | 48 | 25 | 51 | 25 | 19 | 39 | 6 | 35 | 2 | 37 | 5 | ||
| 150100 | in | 1 | 0.75 | 2.13 | 3.88 | 1.88 | 1 | 2 | 1 | 0.65 | 1.3 | 0.26 | 1.32 | 0.06 | 1.56 | 0.2 | 1/4 NPT |
| mm | 25 | 19 | 54 | 99 | 48 | 25 | 51 | 25 | 17 | 33 | 7 | 34 | 2 | 40 | 5 | ||
| 150125 | in | 1.25 | 1 | 2.38 | 3.88 | 1.88 | 1 | 2.5 | 1.25 | 1 | 2 | 0.31 | 1.61 | 0.06 | 1.68 | 0.28 | 1/4 NPT |
| mm | 32 | 25 | 61 | 99 | 48 | 25 | 64 | 32 | 25 | 51 | 8 | 41 | 2 | 43 | 7 | ||
| 150150 | in | 1.5 | 1.25 | 2.75 | 4.38 | 2.13 | 1.25 | 2.5 | 1.25 | 0.86 | 1.73 | 0.25 | 1.44 | 0.06 | 1.88 | 0.28 | 3/8 NPT |
| mm | 38 | 32 | 70 | 111 | 54 | 32 | 64 | 32 | 22 | 44 | 6 | 37 | 2 | 48 | 7 | ||
| 150200 | in | 2 | 1.75 | 3.25 | 4.38 | 2.13 | 1.25 | 3 | 1.5 | 1.17 | 2.34 | 0.28 | 1.48 | 0.06 | 2.13 | 0.28 | 3/8 NPT |
| mm | 51 | 45 | 83 | 111 | 54 | 32 | 76 | 38 | 30 | 59 | 7 | 38 | 2 | 54 | 7 | ||
| 150250 | in | 2.5 | 2.25 | 3.75 | 4.38 | 2.13 | 1.25 | 3 | 1.5 | 1 | 2 | 0.31 | 1.44 | 0.06 | 2.38 | 0.28 | 3/8 NPT |
| mm | 64 | 57 | 95 | 111 | 54 | 32 | 76 | 38 | 25 | 51 | 8 | 37 | 2 | 60 | 7 | ||
| 150300 | in | 3 | 2.75 | 4.25 | 5.63 | 2.75 | 1.75 | 3.25 | 1.63 | 1.2 | 2.41 | 0.41 | 1.44 | 0.06 | 2.63 | 0.28 | 1/2 NPT |
| mm | 76 | 70 | 108 | 143 | 70 | 45 | 83 | 41 | 31 | 61 | 10 | 37 | 2 | 37 | 7 | ||
Heavy Duty Line Vac™
Our most powerful Line Vac moves high volumes of material and resists wear!
What Is The Heavy Duty Line Vac?
The Heavy Duty Line Vac is EXAIR’s most powerful conveyor. The appearance is similar to the standard Line Vac but performance has been boosted dramatically. The Heavy Duty Line Vac has been engineered to convey materials over longer vertical and horizontal distances. The hardened alloy construction helps prevent premature wear that could occur with ordinary aluminium or stainless steel Line Vacs.
Many applications require that materials be transported over longer distances. The Heavy Duty Line Vac can move more material over longer lengths. They have been designed for rugged, industrial applications.
The table below gives a quick comparison of our Light Duty Line Vac, standard Line Vac, and the Heavy Duty Line Vac models. For comparison, the test shows the 2″ (51mm) model of each style conveying the same material over various lengths. Heavy Duty Line Vac conveys more material in less time.
| Rock Salt Conveying Rate Comparison | ||
| 30.5m (100 Feet) | 61m (200 Feet) | |
| Model 130200 2″ (51mm) Light Duty Line Vac | 75.3 kg/hr (166 lbs/hr) | N/A |
| Model 6084 2″ (51mm) Line Vac | 151.5 kg/hr (334 lbs/hr) | 38.6 kg/hr (85 lbs/hr) |
| Model 150200 2″ (51mm) Heavy Duty Line Vac | 237.7 kg/hr (524 lbs/hr) | 90.7 kg/hr (200lbs/hr) |
Horizontal conveying tested at 80 PSIG (5.5 BAR)
Heavy Duty Threaded Line Vac
EXAIR’s Heavy Duty Threaded Line Vac air operated conveyors convert ordinary pipe into a powerful conveying system for parts, scrap, trim and other bulk materials. The engineered Heavy Duty Threaded Line Vac attaches easily to ordinary NPT pipe and fittings available from any home centre, hardware store or plumbers supply. With its hardened alloy construction, the Heavy Duty Threaded Line Vac withstands premature wear that could occur with aluminium and stainless steel.
How The Heavy Duty Line Vac Works
Compressed air flows through the inlet (1) into an annular plenum chamber (2). It is then injected into the throat through directed nozzles (3). These jets of air create a vacuum at the intake (4) which draws material in and accelerates it through the unit (5) for conveying over long vertical or horizontal distances.
Warning : Do not use EXAIR Line Vacs with any material that can become an explosive mixture.
Watch the Video
Line Vac Drum Cover
EXAIR’s fine mesh non-woven Drum Cover is built to fit over the top of 205 or 60 litre drums. The breathable material allows the air from a Line Vac air operated conveyor to circulate, whether moving material in or out of the drum. The cover prevents contamination of your material and keeps material from escaping the drum, which keeps your work environment cleaner and safer.
Since it is fabricated to fit 205 or 60 litre drums, it is the simplest of solutions when needing a containment vessel for your transferred scrap, trim, waste, parts, chips or pellets.
It is suitable for Line Vac conveyance hoses from ¾” (19mm) through 3.4” (86.4mm) outside diameters and comes complete with hose clamps and a durable spring buckle strap for quick and easy installation.
Performance
| Size | Air Consumption | Vacuum | ||||
| 80 PSIG | 5.5 BAR | |||||
| Model | in | mm | SCFM | SLPM | H2O | kPa |
| 150075 151075 |
0.75 | 19 | 26 | 736 | -144 | -36 |
| 150100 151100 |
1 | 25 | 35 | 991 | -105 | -26 |
| 150125 151125 |
1.25 | 32 | 49 | 1,388 | -83 | -21 |
| 150150 151150 |
1.5 | 38 | 55 | 1,557 | -60 | -15 |
| 150200 151200 |
2 | 51 | 75 | 2,124 | -42 | -10 |
| 150250 151250 |
2.5 | 64 | 90 | 2,548 | -28 | -7 |
| 150300 151300 |
3 | 76 | 108 | 3,058 | -20 | -5 |
Applications
- Hopper loading
- Fibre tensioning
- Material conveying
- Waste/trim removal
- Chip removal
- Part transfer
- Filling operations
Advantages
- Hardened alloy construction
- Highest throughput capability
- Compact
- Quiet
- No moving parts
- Fits standard hose, tube and pipe
- Available from stock
An automotive manufacturer vacuums chips from drive train differentials with a Model 150200 2" (51mm) Heavy Duty Line Vac.
Metal parts are conveyed with the Model 150200 2" (51mm) Heavy Duty Line Vac as they drop off the edge of the conveyor
The hardened alloy construction of the Heavy Duty Threaded Line Vac resists wear when conveying abrasive steel shot
Heavy Duty Line Vac
Heavy Duty Threaded Line Vac

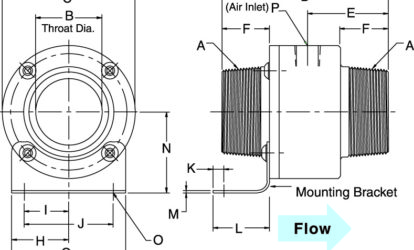

| Heavy Duty Threaded Line Vac Model | Pipe Size | |||||||||||||||||
| A | B | C | D | E | F1 | F2 | G | H | I | J | K | L | M | N | O | P | ||
| 151075 | 3/4 NPT | in | 0.5 | 1.88 | 3.88 | 1.88 | 1 | 1 | 2 | 1 | 0.76 | 1.52 | 0.25 | 1.38 | 0.06 | 1.44 | 0.2 | 1/4 NPT |
| mm | 13 | 48 | 99 | 48 | 25 | 25 | 51 | 25 | 19 | 39 | 6 | 35 | 2 | 37 | 5 | |||
| 151100 | 1 NPT | in | 0.75 | 2.13 | 4.25 | 2.06 | 1.19 | 1.19 | 2 | 1 | 0.65 | 1.3 | 0.25 | 1.32 | 0.06 | 1.56 | 0.2 | 1/4 NPT |
| mm | 19 | 54 | 108 | 52 | 30 | 30 | 51 | 25 | 17 | 33 | 6 | 34 | 2 | 40 | 5 | |||
| 151125 | 1-1/4 NPT | in | 1 | 2.38 | 4.63 | 2.25 | 1.38 | 1.38 | 2.5 | 1.25 | 1 | 2 | 0.31 | 1.61 | 0.06 | 1.68 | 0.28 | 1/4 NPT |
| mm | 25 | 60 | 118 | 57 | 35 | 35 | 64 | 32 | 25 | 51 | 8 | 41 | 2 | 43 | 7 | |||
| 151150 | 1-1/2 NPT | in | 1.25 | 2.75 | 4.63 | 2.25 | 1.38 | 1.38 | 2.5 | 1.25 | 0.86 | 1.73 | 0.25 | 1.44 | 0.06 | 1.88 | 0.28 | 3/8 NPT |
| mm | 32 | 70 | 118 | 57 | 35 | 35 | 64 | 32 | 22 | 44 | 6 | 37 | 2 | 48 | 7 | |||
| 151200 | 2 NPT | in | 1.75 | 3.25 | 4.63 | 2.25 | 1.38 | 1.38 | 3 | 1.5 | 1.17 | 2.34 | 0.28 | 1.48 | 0.06 | 2.13 | 0.28 | 3/8 NPT |
| mm | 44 | 83 | 118 | 57 | 35 | 35 | 76 | 38 | 30 | 59 | 7 | 38 | 2 | 54 | 7 | |||
| 151250 | 2-1/2 NPT | in | 2.25 | 3.75 | 5.38 | 2.56 | 1.81 | 1.69 | 3 | 1.5 | 1 | 2 | 0.31 | 1.44 | 0.06 | 2.38 | 0.28 | 3/8 NPT |
| mm | 57 | 95 | 137 | 65 | 46 | 43 | 76 | 38 | 25 | 51 | 8 | 37 | 2 | 60 | 7 | |||
| 151300 | 3 NPT | in | 2.75 | 4.25 | 5.67 | 2.75 | 1.81 | 1.75 | 3.25 | 1.63 | 1.2 | 2.41 | 0.41 | 1.44 | 0.06 | 2.63 | 0.28 | 1/2 NPT |
| mm | 70 | 108 | 144 | 70 | 46 | 45 | 83 | 41 | 31 | 61 | 10 | 37 | 2 | 67 | 7 | |||
Models
| Heavy Duty Line Vac Models | |||||
| Heavy Duty Line vac Only | |||||
| Heavy Duty Line Vac Kits | include the Heavy Duty Line Vac, mounting bracket for, filter separator and pressure regulator (with coupler) | ||||
| Inlet / Outlet Diameter | Heavy Duty Line Vac Only Model | Heavy Duty Line Vac Kit Model | Inlet / Outlet Thread Size | Heavy Duty Threaded Line Vac Only Model | Heavy Duty Threaded Line Vac Kit Model |
| 3/4″ (19mm) | BP150075 | BP152075 | 3/4 NPT | BP151075 | BP153075 |
| 1″ (25mm) | BP150100 | BP152100 | 1 NPT | BP151100 | BP153100 |
| 1-1/4″ (32mm) | BP150125 | BP152125 | 1-1/4 NPT | BP151125 | BP153125 |
| 1-1/2″ (38mm) | BP150150 | BP152150 | 1-1/2 NPT | BP151150 | BP153150 |
| 2″ (51mm) | BP150200 | BP152200 | 2 NPT | BP151200 | BP153200 |
| 2-1/2″ (64mm) | BP150250 | BP152250 | 2-1/2 NPT | BP151250 | BP153250 |
| 3″ (76mm) | BP150300 | BP152300 | 3 NPT | BP151300 | BP153300 |
| Line Vac Drum Cover & Mounting Brackets | |||||
| Model | Description | ||||
| 6850 | Drum Cover Kit includes Drum Cover, strap, 3 stainless hose clamps (¾” – 1¼”, 1½” – 2½” and 3″) |
||||
| 6994 | Mounting Bracket For 3/8″ (10mm) & 1/2″ (13mm) Line Vac Units | ||||
| 6995 | Mounting Bracket For 3/4″ (19mm) & 1″ (25mm) Line Vac Units | ||||
| 6996 | Mounting Bracket For 1-1/4″ (32mm) & 1-1/2″ (38mm) Line Vac Units | ||||
| 6997 | Mounting Bracket For 2″ (51mm) & 2-1/2″ (64mm) Line Vac Units | ||||
| 6998 | Mounting Bracket For 3″ (76mm) Line Vac Units | ||||
Accessories
Filters, Regulators, Valves & More
With proper filtration of dirt, moisture and oil from the compressed air supply, EXAIR compressed air products will operate for years with no maintenance required. Use a 5 micron or smaller filter separator on the compressed air supply. To prevent problems associated with oil, use a 0.03 micron or smaller oil removal filter on the compressed air supply. Pressure regulators permit easy selection of the operating pressure, providing infinite control of flow, force and air consumption.
Learn More
