Heavy Duty Dry Vac™

Vacuum more material in less time!
Industrial duty vacuum has a rugged construction to resist wear!

What Is The Heavy Duty Dry Vac?

EXAIR’s Heavy Duty Dry Vac attaches to an ordinary 205-litre (44-gallon) open-top drum to turn it into a powerful, industrial duty vacuum cleaner. The Heavy Duty Dry Vac has been engineered to vacuum more dry materials in less time with less wear.

Designed for tough industrial environments, the hardened alloy construction resists premature wear while the increased power handles difficult jobs and harsh conditions. The quiet operation makes it suitable for a wide variety of applications including the clean up of abrasive materials like steel shot, garnet, metal chips and sand while also useful for general purpose applications like vacuuming floors, machines, work stations, industrial machinery and equipment.

Electrically operated vacuums have motors and impellers that clog and wear out quickly. There’s also a potential shock hazard when electric vacs are used in standing liquids. The Heavy Duty Dry Vac is a compressed air powered, which eliminates the shock hazard. It has no moving parts to wear out or break, to assure long life. It is quiet with a sound level that is half that of electric vacs. A static resistant hose prevents painful shocks when vacuuming dry, dusty materials.

The Heavy Duty Dry Vac’s lever lock drum lid fits any open top 205-liter (44-gallon) drum. Moving it from one drum to another can be done quickly, making it easy to keep different materials separate for recycling. All materials are vacuumed directly into the drum, eliminating the heavy lifting that is common with electrically powered vacuums. The Heavy Duty Dry Vac can be used with an open head steel, fibre or plastic drum that is in good condition (ANSI Standard #MH2-2004). To prevent material contamination, a poly drum liner can be inserted into the drum.

  Vacuuming Rate Comparison
  1/4 NPT Pipe Plugs
bulk density is 4,005 kg/m3 (250 lb/ft3)
Plastic Pellets (tumbling media)
bulk density is 1,110 kg/m3(69.3 lb/ft3)
Steel Shot (blasting media)
bulk density is 5,089 kg/m3 (317.7 lb/ft3)
Standard Chip Vac 5 kg/min (11.1 lbs/min) 12.4 kg/min (27.4 lbs/min) 5.9 kg/min (13 lbs/min)
Heavy Duty Dry Vac 12.2 kg/min (26.9 lbs/min) 23.4 kg/min (51.6 lbs/min) 14.5 kg/min (32 lbs/min)
% Increase 142% 88% 146%



How The Heavy Duty Dry Vac Works

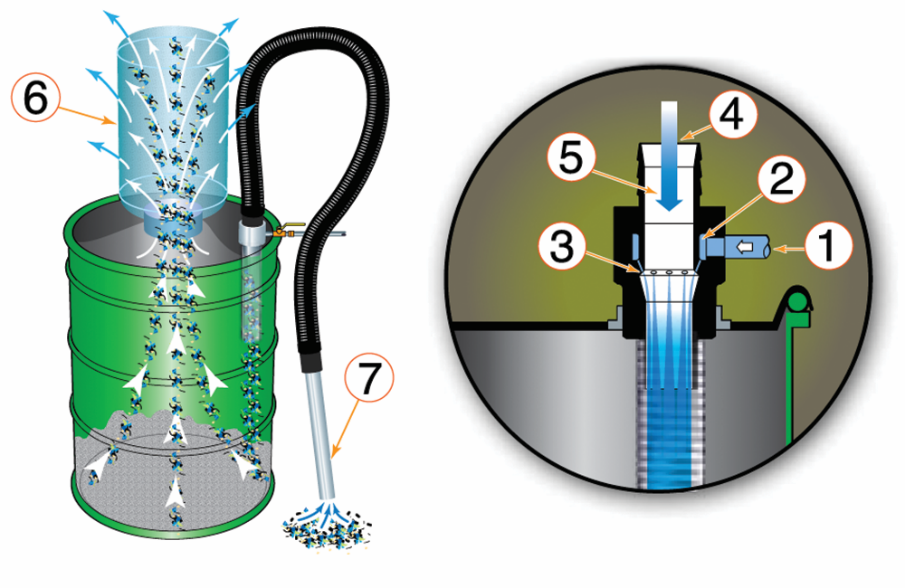

Compressed air, normally 80-100 PSIG (5.5 – 6.9 BAR), flows through the inlet (1) into an annular plenum chamber (2). It is then injected into the throat through directed nozzles (3). These jets of air create a vacuum at the intake (4) which draws material in, accelerates it through the unit (5) and directs it to the bottom of the drum. The airflow exhausts through the port in the drum lid. Airborne particles are trapped by the filter bag (6). The Heavy Duty Dry Vac unit (5) and vacuum tools (7) are built to withstand rugged use.

Warning: Do not use with combustible dust.

Performance

Description Pressure Supply Air Consumption Inlet Sound Level
  PSIG BAR SCFM SLPM NPT dBA
Heavy Duty
Dry Vac
80 5.5 68 1,924 3/8 82

Applications

  • Work surfaces
  • Abrasive tumbling media
  • Industrial machinery
  • Shop floors
  • Sand blasting equipment
  • Grinders
  • Punch presses
  • Absorbent pick-up
  • Building maintenance/remodelling
  • Saws Gravel

Advantages

  • Moves more material in less time
  • Hardened construction resists wear
  • No moving parts – maintenance free
  • No motors to clog or wear out
  • No electricity
  • Continuous duty with high capacity
  • Static resistant hose
  • Quiet
  • Powerful direct flow action
  • Heavy duty accessories

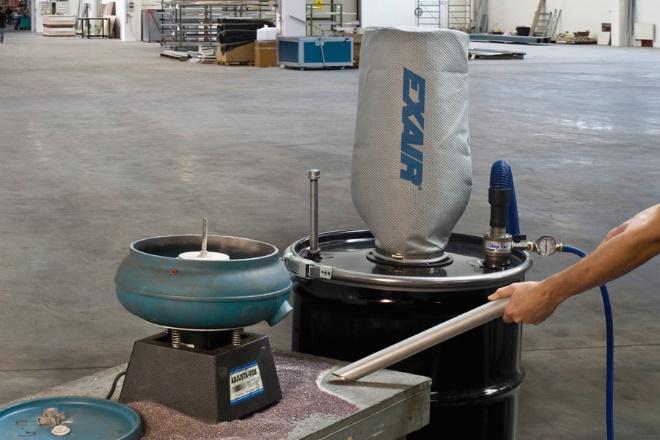

The Heavy Duty Dry Vac vacuums up abrasive garnet from the work surface surrounding a vibratory bowl used to deburr parts.

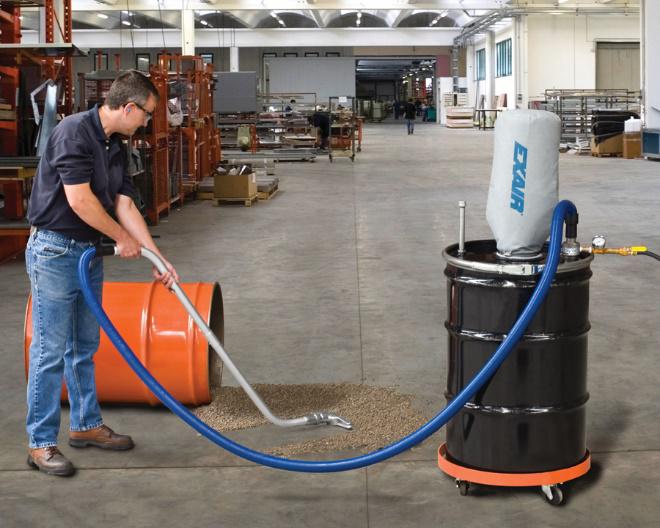

Sand that covers the floor around a sandblaster is quickly vacuumed into the drum using the rugged floor tool.

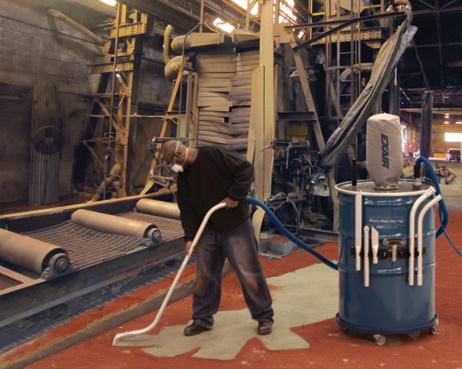

A Heavy Duty Dry Vac provides maximum capacity clean-up for a large dusty walnut shell blasting application.

The Heavy Duty Dry Vac cleans up a spill of steel shot.

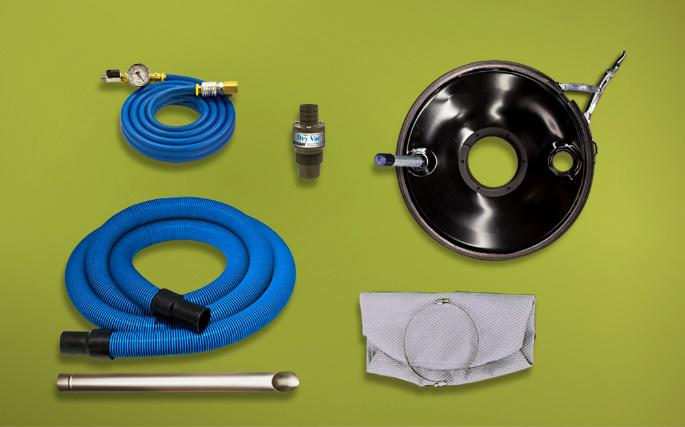

The Model 6197-205 Heavy Duty Dry Vac System includes 3.05m (10-foot) static resistant hose, 6.1m (20-foot) compressed air hose with swivel fitting, filter bag, aluminium chip wand, shutoff valve and gauge.

The Model 6297-205 Deluxe Heavy Duty Dry Vac System comes complete with 3.05m (10-foot) static resistant hose, 6.1m (20-foot) compressed air hose with swivel fitting, filter bag, aluminium chip wand, shutoff valve, gauge, heavy duty tools, tool holder and drum dolly.

Models

Heavy Duty Dry Vac Systems
Model Description
BP6197-205 205-Litre Heavy Duty Dry Vac System
includes the Heavy Duty Dry Vac, lever lock drum lid, shutoff valve, filter bag, 3.1m (10-foot) polyethylene static resistant hose (38mm/1-1/2″ ID), hose hanger, 1/2 NPT quick connect couplings, 6.1m (20-foot) compressed air hose with swivel fitting, pressure gauge and aluminium chip wand (drum not included)
BP6297-205 205-Litre Deluxe Heavy Duty Dry Vac System

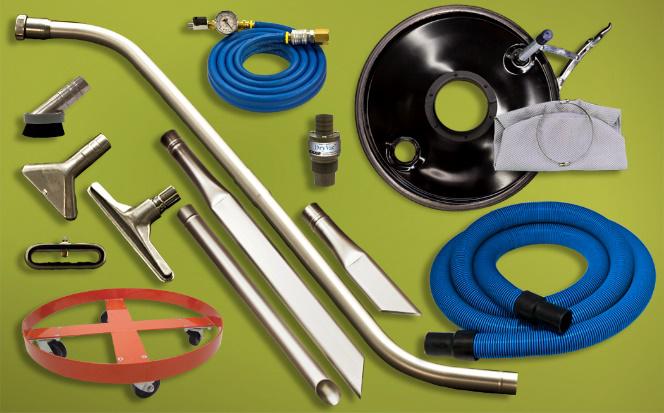

includes the Heavy Duty Dry Vac, lever lock drum lid, shutoff valve, filter bag, 3.05m (10-foot) polyethylene static resistant hose (38mm/1-1/2″ ID), hose hanger, 1/2 NPT quick connect couplings, 6.1m (20-foot)) compressed air hose with swivel fitting and pressure gauge, drum dolly, tool holder and heavy duty aluminium tools, including a 2-piece double bend wand, 305mm (12″) floor tool, 279mm (11″) crevice tool, 610mm (24″) crevice tool, skimmer tool with detachable brush, tool holder, and a 89mm (3-1/2″) diameter dust brush with conductive bristles (drum not included)
BP6097 Heavy Duty Dry Vac only – included in all systems listed above
Filter Bag & Hose
Model Description
6804 Replacement Filter Bag, 95% efficient at 0.1 micron
6580-20 6.1m (20-foot) Static Resistant Vacuum Hose

Accessories

Filters, Regulators, Valves & More

With proper filtration of dirt, moisture and oil from the compressed air supply, EXAIR compressed air products will operate for years with no maintenance required. Use a 5 micron or smaller filter separator on the compressed air supply. To prevent problems associated with oil, use a 0.03 micron or smaller oil removal filter on the compressed air supply. Pressure regulators permit easy selection of the operating pressure, providing infinite control of flow, force and air consumption.

Learn More

Heavy Duty Dry Vac installation & Maintenance Sheets
