| 2″ High Power Flat Super Air Nozzles | |||
| Model | Inlet | Material | |
| BPHP1125 | 1/4 BSP Female | Zinc Aluminium Alloy | |
| BPHP1125SS | 1/4 BSP Female | Type 316 Stainless Steel | |
| HP1132SS | N/A | Shim Set – includes .020″ (0.51mm) and .030″ (0.76mm) thick type 316 stainless steel shims | |

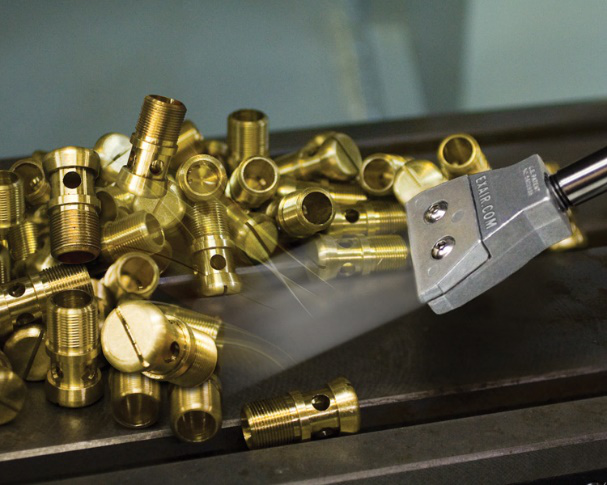

Model HP1125 and HP1125SS 2” High Power Flat Super Air Nozzle
EXAIR’s 2″ High Power Flat Super Air Nozzles produce a flat 2″ (51mm) wide airstream with a strong blowing force of 998 grams (2.2 pounds). The adjustable force is more than three times that of ordinary air nozzles. It uses EXAIR’s patented* technology to maximise entrained airflow while reducing noise levels.
†Patent #5402938
Performance
| Air Consumption | Force* | Sound Level | |||
| Model | SCFM | SLPM | Lbs | Grams | dBA |
| HP1125 | 37 | 1,039 | 2.2 | 998 | 83 |
| HP1125SS | 37 | 1,039 | 2.2 | 998 | 83 |
* Force measured at 12″ (305mm) from target. Sound level measured at 36″ (914mm).
All measurements taken at 80 PSIG (5.5 BAR).
.025″ (0.64mm) shim installed.
Advantages
- Forceful, laminar airstream
- Patented shim design for changing the airflow
- Quiet
- Low air consumption
- Meets OSHA noise level requirements
- Meets OSHA pressure requirements
- Available in zinc aluminium or type 316 stainless steel

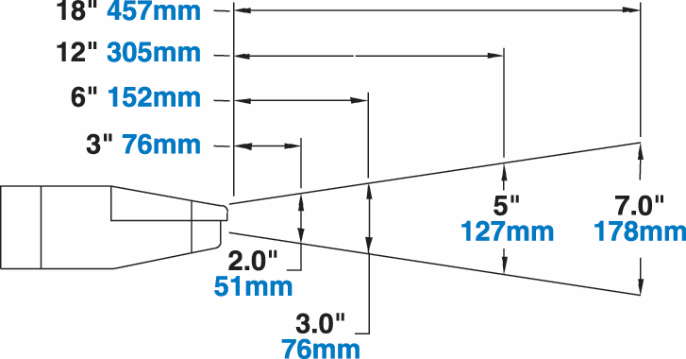

Airflow Pattern

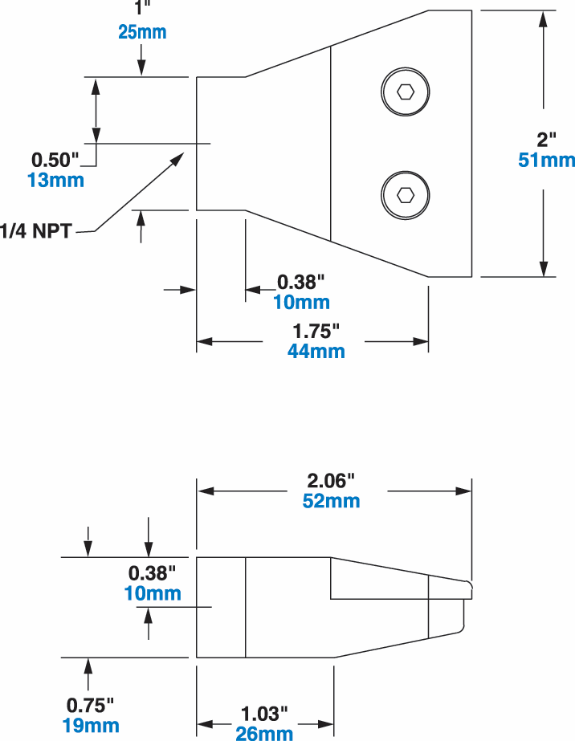

Dimensions
Models
Accessories
Swivel Fittings, Stay Set Hoses & More
EXAIR Swivel Fittings make it easy to adjust the aim of the Air Nozzles and Jets. Correct placement can help optimise performance and improve efficiency. Add Flexible Stay Set Hoses and Magnetic Bases for applications where frequent repositioning of the Air Nozzles or Jets is required.
Learn MoreFilters, Regulators, Valves & More
With proper filtration of dirt, moisture and oil from the compressed air supply, EXAIR compressed air products will operate for years with no maintenance required. Use a 5 micron or smaller filter separator on the compressed air supply. To prevent problems associated with oil, use a 0.03 micron or smaller oil removal filter on the compressed air supply. Pressure regulators permit easy selection of the operating pressure, providing infinite control of flow, force and air consumption.
Learn More
