Model HP1126 and HP1126SS 1” High Power Flat Super Air Nozzle

EXAIR’s 1″ High Power Flat Super Air Nozzles produce a flat 1” (25mm) wide airstream with a blowing force of 454 grams (1 lb). The unique design of this super-efficient nozzle makes it an ideal fit for both tight spaces and tight budgets. It uses EXAIR’s patented technology to maximise entrained airflow while reducing noise levels.

Performance

  Air Consumption Force* Sound Level
Model SCFM SLPM Lbs Grams dBA
HP1126 17.5 495 1 454 82
HP1126SS 17.5 495 1 454 82

* Force measured at 12″ (305mm) from target.Sound level measured at 36″ (914mm).
All measurements taken at 80 PSIG (5.5 BAR).
.025″ (0.64mm) shim installed.

Advantages

  • Forceful, laminar airstream
  • Patented shim design for changing the airflow
  • Quiet
  • Low air consumption
  • Meets OSHA noise level requirements
  • Meets OSHA pressure requirements
  • Available in zinc aluminium or type 316 stainless steel

A 1” High Power Flat Super Air Nozzle is used to tip a part from a chute onto a conveyor

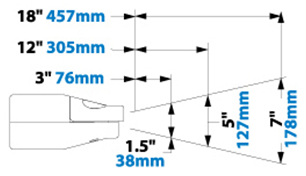

Airflow Pattern
Dimensions

Models

1″ High Power Flat Super Air Nozzles
Model Inlet Material
BPHP1126 1/8 BSP Female Zinc Aluminium Alloy
BPHP1126SS 1/8 BSP Female Type 316 Stainless Steel
HP1136SS N/A Shim Set – includes .020″ (0.51mm) and .030″ (0.76mm) thick type 316 stainless steel shims

Accessories

Swivel Fittings, Stay Set Hoses & More

EXAIR Swivel Fittings make it easy to adjust the aim of the Air Nozzles and Jets. Correct placement can help optimise performance and improve efficiency. Add Flexible Stay Set Hoses and Magnetic Bases for applications where frequent repositioning of the Air Nozzles or Jets is required.

Learn More
Filters, Regulators, Valves & More

With proper filtration of dirt, moisture and oil from the compressed air supply, EXAIR compressed air products will operate for years with no maintenance required. Use a 5 micron or smaller filter separator on the compressed air supply. To prevent problems associated with oil, use a 0.03 micron or smaller oil removal filter on the compressed air supply. Pressure regulators permit easy selection of the operating pressure, providing infinite control of flow, force and air consumption.

Learn More

Installation and Maintenance Sheets:

pdf
Air Nozzles, Air Jets & Safety Air Guns

180.38 KB

pdf
1” Super Air Nozzle Shim Set

123.15 KB

Air Nozzles & Jets PDF Brochure
