| 1/2″ Super Air Nozzles | |||
| Model | Inlet | Material | |
| BP1106 | 1/2 BSP Female | Zinc Aluminium Alloy | |
| BP1106SS | 1/2 BSP Female | Type 316 Stainless Steel | |
| BP1106-PEEK | 1/2 BSP Female | PEEK Thermoplastic | |
| BP1107 | 1/2 BSP Male | Zinc Aluminium Alloy | |
| BP1107SS | 1/2 BSP Male | Type 316 Stainless Steel | |
Model 1106, 1106SS, 1106-PEEK, 1107 and 1107SS
1/2″ Large Super Air Nozzles

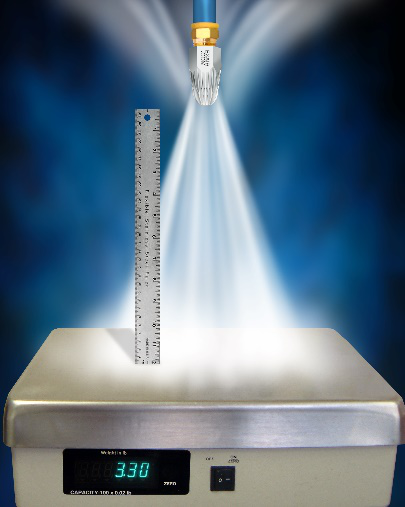

EXAIR’s 1/2″ Super Air Nozzles produce 1.5kg (3.3 lbs) of blowing force – 4 times that of ordinary nozzles. Air consumption and noise are extremely low compared to that of open pipe or copper tubes. Available in zinc aluminium alloy, type 316 stainless steel and PEEK thermoplastic.
Performance
| Â | Air Consumption | Force* | Sound Level | ||
| Model | SCFM | SLPM | Lbs | Kg | dBA |
| 1106 | 60 | 1,699 | 3.3 | 1.5 | 87 |
| 1106SS | 60 | 1,699 | 3.3 | 1.5 | 87 |
| 1106-PEEK | 60 | 1,699 | 3.3 | 1.5 | 87 |
| 1107 | 60 | 1,699 | 3.3 | 1.5 | 87 |
| 1107SS | 60 | 1,699 | 3.3 | 1.5 | 87 |
* Force measured at 12″ (305mm) from target.
Sound level measured at 36″ (914mm).
All measurements taken at 80 PSIG (5.5 BAR)

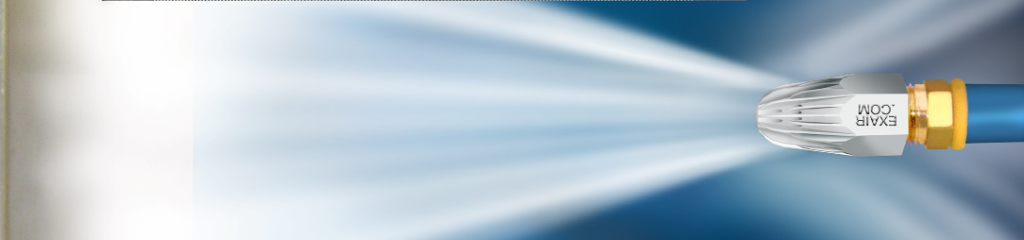

Airflow Pattern & Dimensions
Models
Accessories
Swivel Fittings & More
EXAIR Swivel Fittings make it easy to adjust the aim of the Air Nozzles and Jets. Correct placement can help optimise performance and improve efficiency.
Learn MoreFilters, Regulators, Valves & More
With proper filtration of dirt, moisture and oil from the compressed air supply, EXAIR compressed air products will operate for years with no maintenance required. Use a 5 micron or smaller filter separator on the compressed air supply. To prevent problems associated with oil, use a 0.03 micron or smaller oil removal filter on the compressed air supply. Pressure regulators permit easy selection of the operating pressure, providing infinite control of flow, force and air consumption.
Learn More
