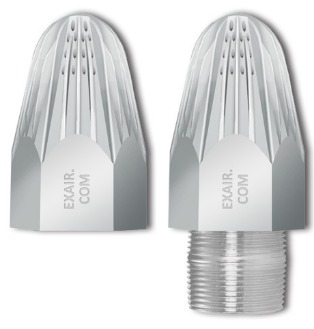

Model 1116 and 1117 1-1/4” Large Super Air Nozzles

EXAIR’s 1-1/4” Super Air Nozzles provide exceptionally strong blowing force. They produce 4.25 kg (9.4 lbs) of blowing force – almost 12 times that of a standard Super Air Nozzle. Available in zinc aluminium alloy.

Performance

  Air Consumption Force* Sound Level
Model SCFM SLPM Lbs Kg dBA
1116 188 5,324 9.4 4.25 102
1117 188 5,324 9.4 4.25 102

* Force measured at 12″ (305mm) from target.Sound level measured at 36″ (914mm).
All measurements taken at 80 PSIG (5.5 BAR).OSHA allows 1 hour of exposure per day without hearing protection.

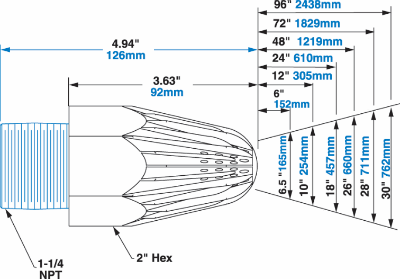

Airflow Pattern & Dimensions

Models

1-1/4″ Super Air Nozzles
Model Inlet Material
BP1116 1-1/4 BSP Female Zinc Aluminium Alloy
BP1117 1-1/4 BSP Male Zinc Aluminium Alloy

Accessories

Filters, Regulators, Valves & More

With proper filtration of dirt, moisture and oil from the compressed air supply, EXAIR compressed air products will operate for years with no maintenance required. Use a 5 micron or smaller filter separator on the compressed air supply. To prevent problems associated with oil, use a 0.03 micron or smaller oil removal filter on the compressed air supply. Pressure regulators permit easy selection of the operating pressure, providing infinite control of flow, force and air consumption.
