Larger 303SS Air Conveyor Converts Standard Pipe to Convey in Corrosive Environments

13th February, 2020

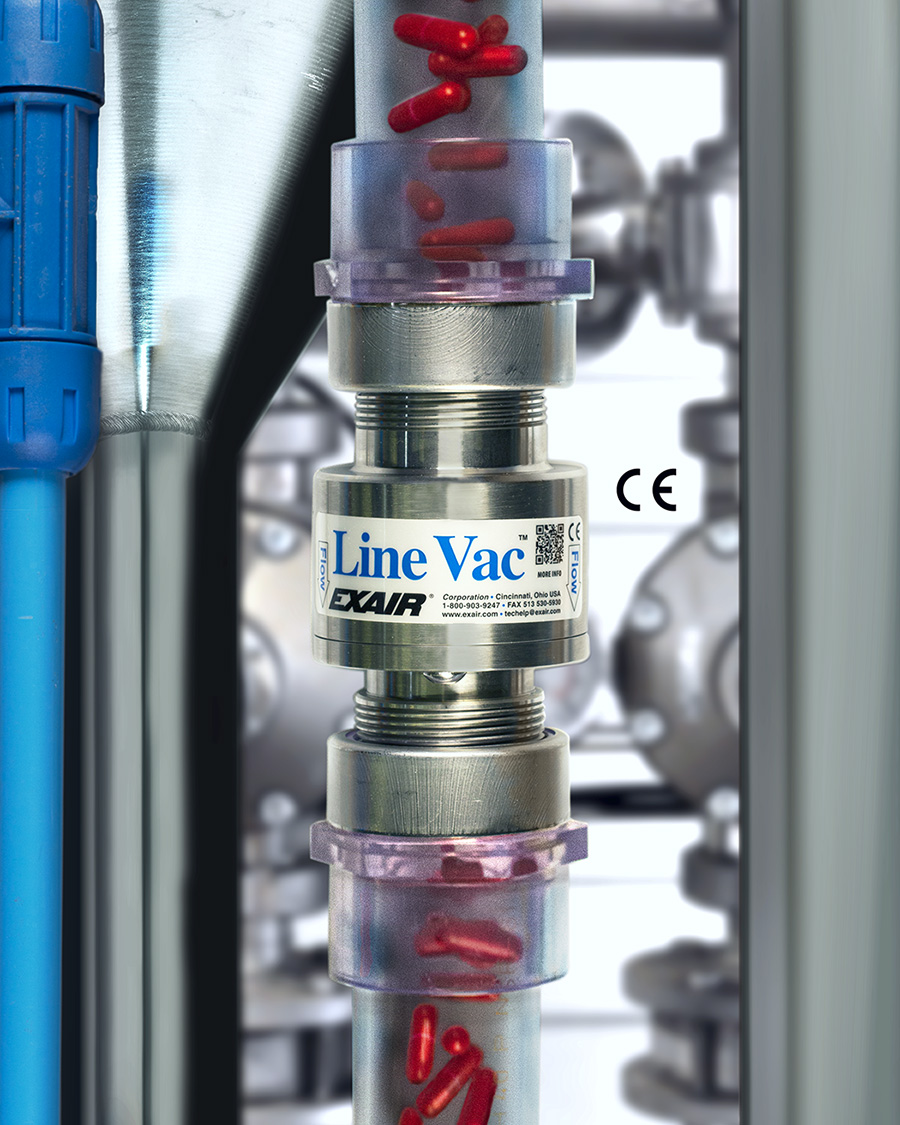

EXAIR’s Type 303 Stainless Steel 2-1/2 NPT Threaded Line Vac Air Operated Conveyors convert ordinary pipe into a powerful conveying system for parts, scrap, trim and other bulk materials. They are ideal for food, chemical, pharmaceutical and medical processes or areas likely to be wet and corrosive that require the benefits of 303SS including excellent chemical and corrosion resistance, performance in higher temperatures, long service life and low maintenance.

Their larger size makes them perfect for conveying bigger parts and large volumes of material over long distances. The Threaded Line Vac is designed to attach to standard plumbing pipe couplers, making it easy to build a complete system using common pipe and fittings that are readily available.

Threaded Line Vac Conveyors eject a small amount of compressed air to produce a vacuum on one end with high output flows on the other. Response is instantaneous and regulating the compressed air pressure provides infinite control of the conveying rate. Applications include scrap trim removal, material conveying, part transfer, fibre tensioning and filling operations.

2-1/2 NPT 303SS Threaded Line Vacs are CE compliant and meet OSHA pressure requirements. The complete size range is 3/8 NPT through 3 NPT. Threaded Line Vac models are also available in type 316 stainless steel for even more demanding high temperature, corrosive and hygienic environments.

Available from Compressed Air Australia, EXAIR Air Operated Conveyor models include Light Duty, Standard, Threaded, Heavy Duty, and Sanitary Flange styles. For further information, please click here.
